Hello List,

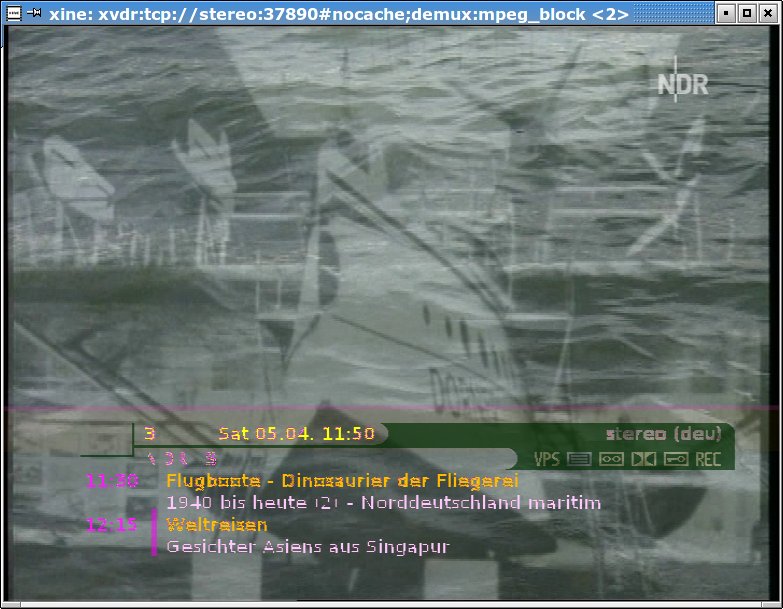

I am not sure what is the status of the vdr-xinelibout pluging regarding vdr-1.6.0. Is the CVS Version already adopted? I have tried to migrate my running vdr-1.4.5 with xineliboutput-1.0.0pre7 to the latest version of vdr-1.6.0 and the latest CVS Version of xineliboutput. Streaming of live-TV is OK but I get only a very unusable OSD (see attached picture) when I hit a button on my "JustAnother"-JAVA-remotecontrol. And it seems so that the SVDR-port is blocked after this first button-press. The "very transparent" OSD shadow than stays forever. TV streaming is still working very fluently without any dropouts.

My configuration is a diskless VDR box with FF Card and xineliboutput without frontends. The client is the "out-of-the-box" xine-ui with the apropriate libs from the actual Debian SID on my desktop computer.

Have I missed something in the setup or is it realy not finished to run with vdr-1.6.0?

Kind regards Manfred

-- ------- Manfred Schmidt-Voigt ------- ----- www.mannitec.de ----- ------- mailto:manfred.schmidt-voigt@mannitec.de -------

Attachments:


Show replies by date

Petri Helin

5 Apr 5 Apr

10:49 a.m.

Manfred Schmidt-Voigt wrote:

...

Hello List,

My configuration is a diskless VDR box with FF Card and xineliboutput without frontends. The client is the "out-of-the-box" xine-ui with the apropriate libs from the actual Debian SID on my desktop computer.

Is the xvdr-plugin for xine-lib (xineplug_inp_xvdr.so in directory `xine-config --plugindir`) of the same version as the xineliboutput vdr-plugin? If not, please install also the cvs version of the xvdr-plugin and try again.

-Petri

Manfred Schmidt-Voigt

1:57 p.m.

Petri Helin schrieb:

...

Manfred Schmidt-Voigt wrote:

...
Hello List,

My configuration is a diskless VDR box with FF Card and xineliboutput without frontends. The client is the "out-of-the-box" xine-ui with the apropriate libs from the actual Debian SID on my desktop computer.

Is the xvdr-plugin for xine-lib (xineplug_inp_xvdr.so in directory `xine-config --plugindir`) of the same version as the xineliboutput vdr-plugin? If not, please install also the cvs version of the xvdr-plugin and try again.

-Petri

vdr mailing list vdr@linuxtv.org http://www.linuxtv.org/cgi-bin/mailman/listinfo/vdr

I have installed the latest CVS Version on both systems again. On the vdr box I have installed the plugin in the plugin tree of vdr (VDR/PLUGINS/src) and have done the following on my desktop machine: cvs ... make frontends make install

... and it has copied a fresh version of the libs to my /usr/lib/xine/plugins/1.1.0 (see attachment)

... but same effects: OSD is only a shadow of an OSD after the first keypress its not longer accepting more button presses...

What else can I check?

-- ------- Manfred Schmidt-Voigt ------- ----- www.mannitec.de ----- ------- mailto:manfred.schmidt-voigt@mannitec.de ------- mannitec02:/usr/local/src/vdr-xineliboutput# make frontends sed: kann ../../../config.h nicht lesen: No such file or directory Makefile:143: ******************************************************** Makefile:144: VDR not detected ! VDR plugin will not be compiled. Makefile:145: ******************************************************** sed: kann ../../../config.h nicht lesen: No such file or directory Makefile:143: ******************************************************** Makefile:144: VDR not detected ! VDR plugin will not be compiled. Makefile:145: ******************************************************** cc -O3 -pipe -Wall -fPIC -g -I/usr/include -c -D_GNU_SOURCE -DPLUGIN_NAME_I18N='"xineliboutput"' -D_REENTRANT -D_LARGEFILE_SOURCE -D_FILE_OFFSET_BITS=64 -DXINELIBOUTPUT_VERSION='"1.0.0rc2"' -DHAVE_XRENDER=1 -DUSE_ICONV=1 -Wall -DFE_STANDALONE -I../../../include xine_sxfe_frontend.c -o xine_sxfe_frontend_standalone.o cc -O3 -pipe -Wall -fPIC -g -I/usr/include -c -D_GNU_SOURCE -DPLUGIN_NAME_I18N='"xineliboutput"' -D_REENTRANT -D_LARGEFILE_SOURCE -D_FILE_OFFSET_BITS=64 -DXINELIBOUTPUT_VERSION='"1.0.0rc2"' -DHAVE_XRENDER=1 -DUSE_ICONV=1 -Wall -I../../../include xine/post.c -o xine/post.o cc -O3 -pipe -Wall -fPIC -g -I/usr/include -c -D_GNU_SOURCE -DPLUGIN_NAME_I18N='"xineliboutput"' -D_REENTRANT -D_LARGEFILE_SOURCE -D_FILE_OFFSET_BITS=64 -DXINELIBOUTPUT_VERSION='"1.0.0rc2"' -DHAVE_XRENDER=1 -DUSE_ICONV=1 -Wall -DFE_STANDALONE -I../../../include tools/vdrdiscovery.c -o tools/vdrdiscovery_standalone.o cc -g xine_sxfe_frontend_standalone.o xine/post.o tools/vdrdiscovery_standalone.o -L/usr/X11R6/lib -lX11 -lXv -lXext -lXrender -ljpeg -L/usr/lib -lxine -lz -lnsl -lpthread -lrt -o vdr-sxfe cc -O3 -pipe -Wall -fPIC -g -I/usr/include -c -D_GNU_SOURCE -DPLUGIN_NAME_I18N='"xineliboutput"' -D_REENTRANT -D_LARGEFILE_SOURCE -D_FILE_OFFSET_BITS=64 -DXINELIBOUTPUT_VERSION='"1.0.0rc2"' -DHAVE_XRENDER=1 -DUSE_ICONV=1 -Wall -DFE_STANDALONE -I../../../include xine_fbfe_frontend.c -o xine_fbfe_frontend_standalone.o cc -g xine_fbfe_frontend_standalone.o xine/post.o tools/vdrdiscovery_standalone.o -L/usr/lib -lxine -lz -lnsl -lpthread -lrt -ljpeg -o vdr-fbfe cc mpg2c.c -o mpg2c cc -O3 -pipe -Wall -fPIC -g -I/usr/include -c -D_GNU_SOURCE -DPLUGIN_NAME_I18N='"xineliboutput"' -D_REENTRANT -D_LARGEFILE_SOURCE -D_FILE_OFFSET_BITS=64 -DXINELIBOUTPUT_VERSION='"1.0.0rc2"' -DHAVE_XRENDER=1 -DUSE_ICONV=1 -Wall -I../../../include xine_input_vdr.c xine_input_vdr.c:4807:4: warning: #warning xine-lib is older than 1.1.2. Multiple audio streams are not supported. cc -O3 -pipe -Wall -fPIC -g -I/usr/include -shared -fvisibility=hidden xine_input_vdr.o -L/usr/lib -lxine -lz -lnsl -lpthread -lrt -o xineplug_inp_xvdr.so cc -O3 -pipe -Wall -fPIC -g -I/usr/include -c -D_GNU_SOURCE -DPLUGIN_NAME_I18N='"xineliboutput"' -D_REENTRANT -D_LARGEFILE_SOURCE -D_FILE_OFFSET_BITS=64 -DXINELIBOUTPUT_VERSION='"1.0.0rc2"' -DHAVE_XRENDER=1 -DUSE_ICONV=1 -Wall -I../../../include xine_post_autocrop.c cc -O3 -pipe -Wall -fPIC -g -I/usr/include -shared -fvisibility=hidden xine_post_autocrop.o -L/usr/lib -lxine -lz -lnsl -lpthread -lrt -o xineplug_post_autocrop.so cc -O3 -pipe -Wall -fPIC -g -I/usr/include -c -D_GNU_SOURCE -DPLUGIN_NAME_I18N='"xineliboutput"' -D_REENTRANT -D_LARGEFILE_SOURCE -D_FILE_OFFSET_BITS=64 -DXINELIBOUTPUT_VERSION='"1.0.0rc2"' -DHAVE_XRENDER=1 -DUSE_ICONV=1 -Wall -I../../../include xine_post_swscale.c xine_post_swscale.c: In function 'open_plugin': xine_post_swscale.c:1525: warning: implicit declaration of function 'xine_list_push_back' cc -O3 -pipe -Wall -fPIC -g -I/usr/include -shared -fvisibility=hidden xine_post_swscale.o -L/usr/lib -lxine -lz -lnsl -lpthread -lrt -o xineplug_post_swscale.so cc -O3 -pipe -Wall -fPIC -g -I/usr/include -c -D_GNU_SOURCE -DPLUGIN_NAME_I18N='"xineliboutput"' -D_REENTRANT -D_LARGEFILE_SOURCE -D_FILE_OFFSET_BITS=64 -DXINELIBOUTPUT_VERSION='"1.0.0rc2"' -DHAVE_XRENDER=1 -DUSE_ICONV=1 -Wall -I../../../include xine_post_audiochannel.c cc -O3 -pipe -Wall -fPIC -g -I/usr/include -shared -fvisibility=hidden xine_post_audiochannel.o -L/usr/lib -lxine -lz -lnsl -lpthread -lrt -o xineplug_post_audiochannel.so mannitec02:/usr/local/src/vdr-xineliboutput# make install sed: kann ../../../config.h nicht lesen: No such file or directory Makefile:143: ******************************************************** Makefile:144: VDR not detected ! VDR plugin will not be compiled. Makefile:145: ******************************************************** xgettext -C -cTRANSLATORS --no-wrap --no-location -k -ktr -ktrNOOP --msgid-bugs-address='phintuka@users.sourceforge.net' -o po/xineliboutput.pot config.c device.c dummy_player.c equalizer.c frontend.c frontend_local.c frontend_svr.c i18n.c media_player.c menu.c menuitems.c mpg2c.c nosignal_720x576.c osd.c setup_menu.c tools.c vdrlogo_32x32.c xine_fbfe_frontend.c xine_frontend.c xine_frontend_lirc.c xine_frontend_main.c xine_input_vdr.c xineliboutput.c xine_post_audiochannel.c xine_post_autocrop.c xine_post_swscale.c xine_sxfe_frontend.c msgmerge -U --no-wrap --no-location --backup=none -q po/cs_CZ.po po/xineliboutput.pot msgfmt -c -o po/cs_CZ.mo po/cs_CZ.po cp po/cs_CZ.mo ../../../locale/cs_CZ/LC_MESSAGES/vdr-xineliboutput.mo msgmerge -U --no-wrap --no-location --backup=none -q po/de_DE.po po/xineliboutput.pot msgfmt -c -o po/de_DE.mo po/de_DE.po cp po/de_DE.mo ../../../locale/de_DE/LC_MESSAGES/vdr-xineliboutput.mo msgmerge -U --no-wrap --no-location --backup=none -q po/fi_FI.po po/xineliboutput.pot msgfmt -c -o po/fi_FI.mo po/fi_FI.po cp po/fi_FI.mo ../../../locale/fi_FI/LC_MESSAGES/vdr-xineliboutput.mo msgmerge -U --no-wrap --no-location --backup=none -q po/it_IT.po po/xineliboutput.pot msgfmt -c -o po/it_IT.mo po/it_IT.po cp po/it_IT.mo ../../../locale/it_IT/LC_MESSAGES/vdr-xineliboutput.mo msgmerge -U --no-wrap --no-location --backup=none -q po/ru_RU.po po/xineliboutput.pot msgfmt -c -o po/ru_RU.mo po/ru_RU.po cp po/ru_RU.mo ../../../locale/ru_RU/LC_MESSAGES/vdr-xineliboutput.mo Installing ///usr/lib/xine/plugins/1.1.0/xineplug_inp_xvdr.so Installing ///usr/lib/xine/plugins/1.1.0/post/xineplug_post_autocrop.so Installing ///usr/lib/xine/plugins/1.1.0/post/xineplug_post_swscale.so Installing ///usr/lib/xine/plugins/1.1.0/post/xineplug_post_audiochannel.so Installing ///usr/bin/vdr-fbfe Installing ///usr/bin/vdr-sxfe mannitec02:/usr/local/src/vdr-xineliboutput#

Manfred Schmidt-Voigt

6 Apr 6 Apr

11:21 p.m.

Manfred Schmidt-Voigt schrieb:

...

Petri Helin schrieb:

...
Manfred Schmidt-Voigt wrote:

...
Hello List,

My configuration is a diskless VDR box with FF Card and xineliboutput without frontends. The client is the "out-of-the-box" xine-ui with the apropriate libs from the actual Debian SID on my desktop computer.

Is the xvdr-plugin for xine-lib (xineplug_inp_xvdr.so in directory `xine-config --plugindir`) of the same version as the xineliboutput vdr-plugin? If not, please install also the cvs version of the xvdr-plugin and try again.

-Petri

vdr mailing list vdr@linuxtv.org http://www.linuxtv.org/cgi-bin/mailman/listinfo/vdr

I have installed the latest CVS Version on both systems again. On the vdr box I have installed the plugin in the plugin tree of vdr (VDR/PLUGINS/src) and have done the following on my desktop machine: cvs ... make frontends make install

... and it has copied a fresh version of the libs to my /usr/lib/xine/plugins/1.1.0 (see attachment)

... but same effects: OSD is only a shadow of an OSD after the first keypress its not longer accepting more button presses...

What else can I check?

vdr mailing list vdr@linuxtv.org http://www.linuxtv.org/cgi-bin/mailman/listinfo/vdr

I've got it now. My XINE Installation on the Desktop machine was a little bit mixed up. The xine-config --plugindir showed a path to 1.1.0 but when I started XINE it wants to load plugins from 1.20. During make frontends the plugins where installed in 1.1.0 and so XINE could not find them. After installing the libxine1-dev Version and reinstaling the frontends they went to 1.20 and now everything is OK!

Sorry for disturbing the list with such a suspicious installation..., but I know there are people on the german vdr-portal with nearly the same pictures. Maybe they should check also there installation. So at least this could help somebody.

Good night!

-- ------- Manfred Schmidt-Voigt ------- ----- www.mannitec.de ----- ------- mailto:manfred.schmidt-voigt@mannitec.de -------
